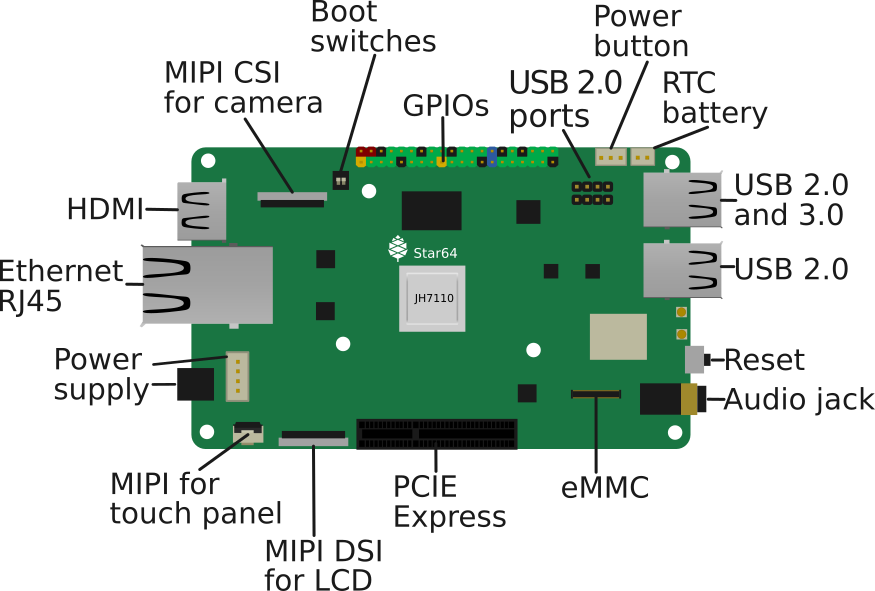

Board features

Video

  • Digital Video output up to 4K@30Hz

  • 4K HDR @ 60fps

  • H.264/AVC Base/Main/High/High10 profile @ level 5.1; up to 4K×2K @ 60fps

  • H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4K×2K @ 60fps

Audio

  • 3.5mm audio Jack

Network

  • Single or Dual 10/100/1000Mbps Ethernet

  • 2.4GHz/5Ghz MIMO WiFi 802.11 b/g/n/ac with Bluetooth 5.2

Storage

  • on-board 128Mbit (16MByte) XSPI NOR flash memory - bootable

  • microSD - bootable, supports SDHC and SDXC and storage up to 256GB

  • eMMC - bootable (optional eMMC Module)

  • 1× USB3.0 Dedicated Host port

  • 3× USB2.0 Host port

Expansion Ports

  • PCIe 2.0 ×1 lane

  • 2×20 pins "Pi2" GPIO Header

    • The JH7110 SoC supports full multiplexing of its GPIO pins. This means any non-power/ground pin can be configured to any function outlined in Table 4-2 of the SoC datasheet.

  • 4 lane MiPi DSI port for LCD panel

  • 4 lane MiPi CSI port for camera module
